Ventilation
Eco-wall Modular Systems

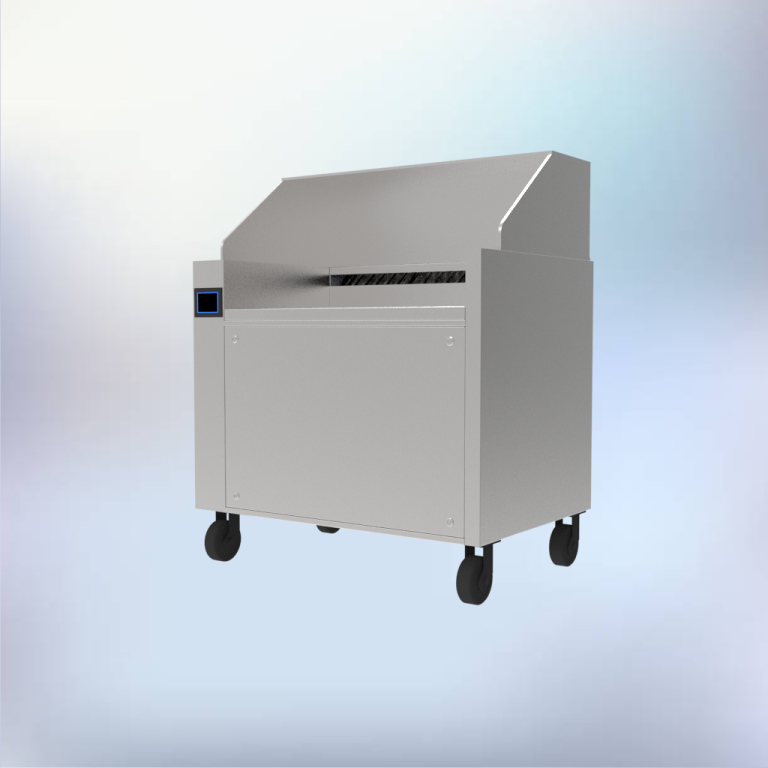

ECOAIR Down Draft Systems are portable cooking stations, an innovative approach to food preparation. Integrated with state-of-the- art induction appliances, recirculating air-filtration, and UL-300 fire suppression systems (optional), eliminating the need for external ventilation. It’s a self-contained front-of-house cooking solution that is perfect for hotels, restaurants, resorts, cafeterias, charcoal stations, etc.
Such hoods can be installed almost anywhere. These hoods operate by filtering the air they suck in and then blowing it back out into the room, essentially using a recirculation process.
Features
- Modular design
- In-built filtration systems to remove smoke, grease and odor particles
- Portable design and easy maintenance
- High efficiency with low noise levels
Eco-wall Modular Systems
Specifications
Material: SS-304, 320 grit sheet
Sheet Thickness: 1.0 - 1.2mm thick
Primary Filtration:
Model: NKV Series Baffle Filters, UL Listed
Certification: UL 1046 / NSF 2 / VDI 2052-1
Compliance: VDI 2052-1 tested (98% @ 10 microns) Flame protection tested to EN 16282-6
Lighting: IP65 & Fire rated LED Spotlights
Manufactured to: ISO 9001 / 140001 / 45001
Compliance: DW-172 / NFPA 96 / ASTM F1704
Mounting: Free standing, Floor mounted
- SS-316, SS-316L Material
- Light fittings, with dimmable 2800K – 6000K color temperature
- ZOE, Demand Controlled Ventilation System
- Built-in Damper in Spigot
- IP65 & fire rated Panel lights
- Fire Suppression System
